Description
A 20 channel professional dual function mixer split in 10 channels per side. Perfect for use on live stage setups, houses of worship or other multi-input venues.
- Frequency response: 10Hz -45kHz (±3dB)
- THD: <0.01%
- DSP Resolution: 24-bit
- Type of effects: Hall, Room, Chapel, Plate, Spring, Gated rev, Reverse, Early refl, Ambience, Stadium, Delay, Echo, Gate, Chorus, Flanger, Phaser, Pitch, Reverb, Leslie, Flang, Ping pong delay
- Presets: 256
- Signal to noise ratio: >112dB
- Output level: +/- 1V
- Input: Line +/- 150mV
- Input: Mic +/- 1.5mV
- Power supply: 100-240VAC / 50-60Hz
- Dimensions: 450 x 775 x 145mm
- Weight: 11.1kg
20 Mono microphone-/line inputs balanced (XLR + 6.3mm Jack)
Built-in stereo USB/Audio Interface to connect directly to your computer
+48V phantom power with individual preamp per channel
75Hz Low cut filter per channel
Multi-FX processor with 256 presets
Solo switch per channel (PFL)
On/off switch per channel
Hi, Mid and Low control for each channel
Adjustable Mid frequency per channel
3 Aux sends per channel (1 pre-/2 post fader)
Adjustable FX, Pan, Trim per channel
Dual 9-band Equalizer

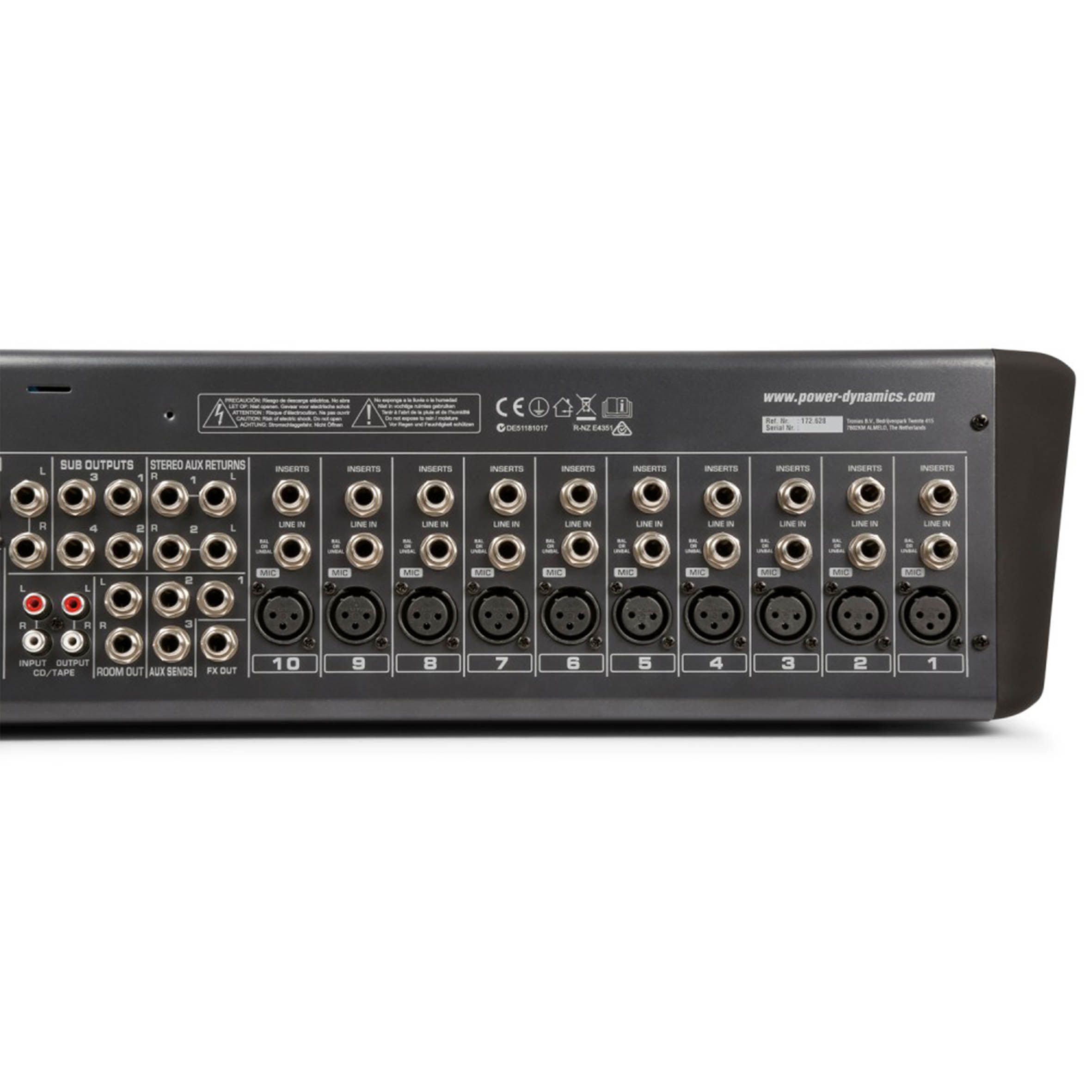

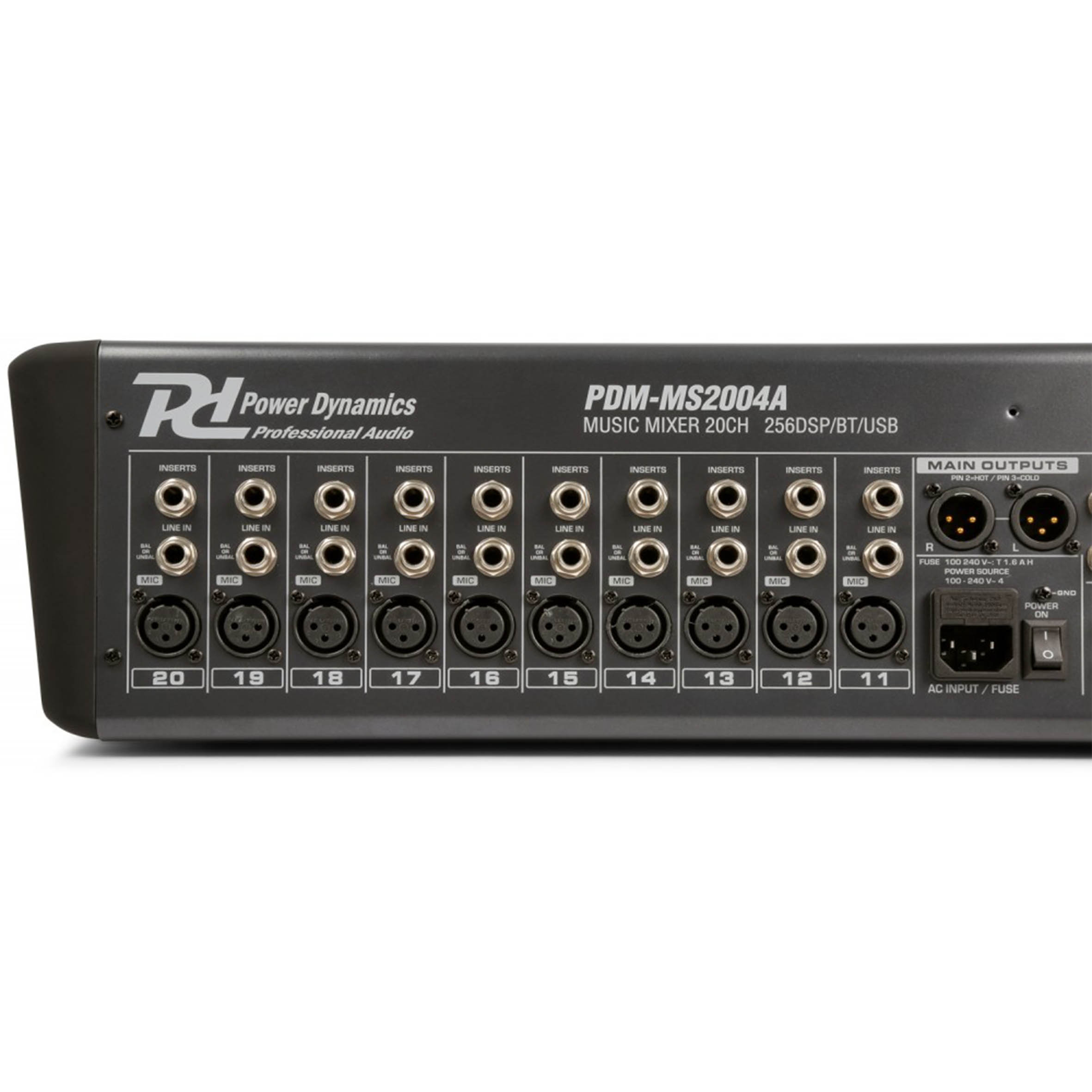

Stereo main outputs balanced (XLR + 6.3mm Jack)
4 Assignable Subgroup outputs (6.3mm Jack)
Separate control room, headphones and stereo rec outputs
Built-in USB player with digital display
BT-receiver for audio streaming
LED VU meter and Peak LED’s

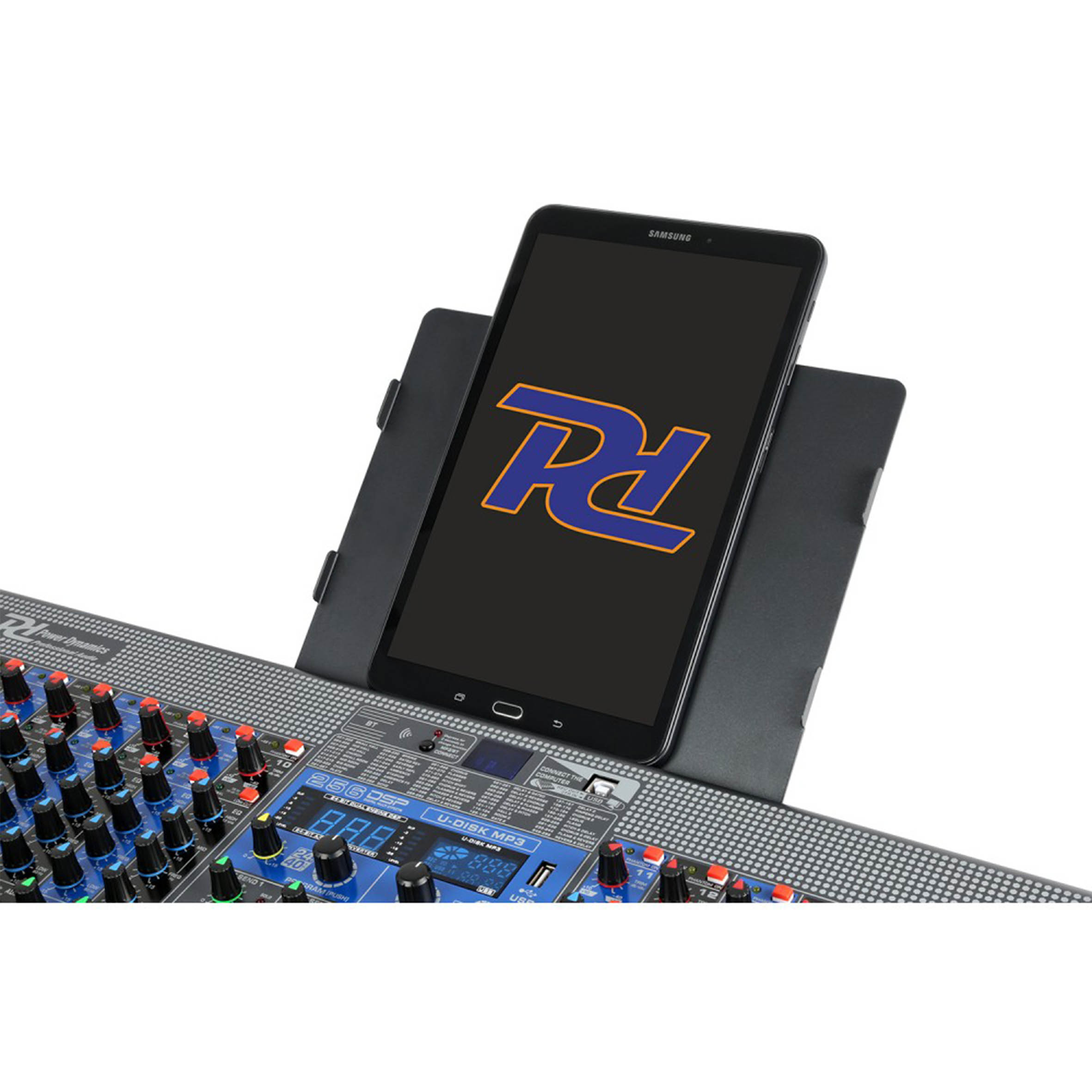

Supplied with telephone holder
